Gold Repair Plugs for Heliocol Swimming Pool Solar Panels Part# 1202910 HC-138G - 12 Packs. Black

Sku: HC-138G

UPC: 620009700253

Quick Overview

Heliocol Solar Panel Part

Details

This kit is used to repair up to 6 damaged riser tubes. These plugs will only work on heliocol or sunstar solar panels with header ribs. Simply cut the damaged riser tube flush with the top header, insert the rubber sleeve and push the plug into the sleeve. Repeat the process for the same damaged riser tube at the bottom header. Replace riser to maintain the uniform appearance of the panel.

Additional Information

UPC 620009700253
Manufacturer HELIOCOL
Features
  • ORIGINAL PART: This is a manufactures original repair plug. These Plugs with Sleeves are designed for the Heliocol and Sunstar solar panels. Manufacture Plug Part# 1202910. HC-138G. This 12 pack of plugs will repair 6 damaged riser tubes.
  • PLUG DESCRIPTION: There are 2 different size repair plugs. The HC-138G Gold plugs are for the Newer panels that have Ribs on the large Header tube where the small riser tubes join. To help identify the panel you have please look at our second image showing what the headers look like. (For the older panels "Pre 2001" with the smooth Header, see ASIN: B00KFMH4GG)
  • NOT A UNIVERSAL PLUG: These plugs will only work with the Heliocol and Sunstar Panels. See our second image that shows the panel's brand name Heliocol stamped into the panel. Do not buy these plugs to repair other brand name panels like the SunQuest panels ( SunQuest plugs ASIN: B007NZPO06 ).
  • HOW TO USE PLUGS: Cut off the damaged tube flush against the header, insert the rubber sleeve and push the plug into the sleeve. Repeat the process for the same damaged tube at the other end of the panel. Re-attach the small tube to the broad heads of the plastic plug to maintain the uniform appearance of the panel.
  • HOW TO FIND YOUR PANELS BRAND NAME: If you don't know or are not sure which panel you have, we can help you. Safely go up on your roof and look at the large header tube that your pvc pool pipe connects to. Most panels will have a serial number and brand name on the header. The Heliocol panels Header tube has the Heliocol name and clock symbols stamped into the panel and the small riser tubes are not connected to each other. See second image for what to look for.

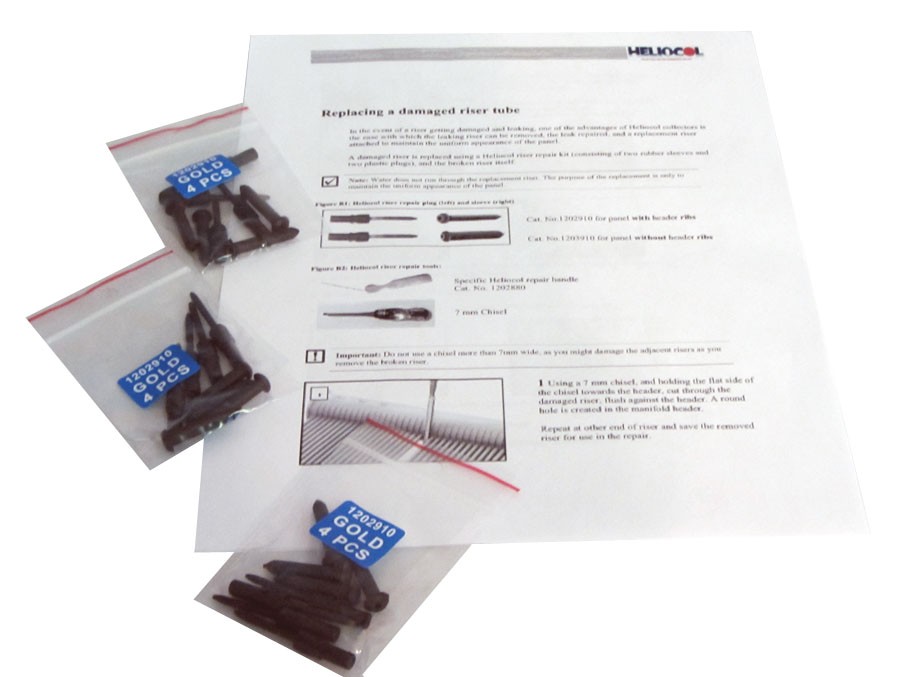

Box Content
  • 12 - rubber sleeves & plugs
  • 1 - instructions
Parts & Accessories Solar Repair

Manuals

There are no manuals available for this item.
